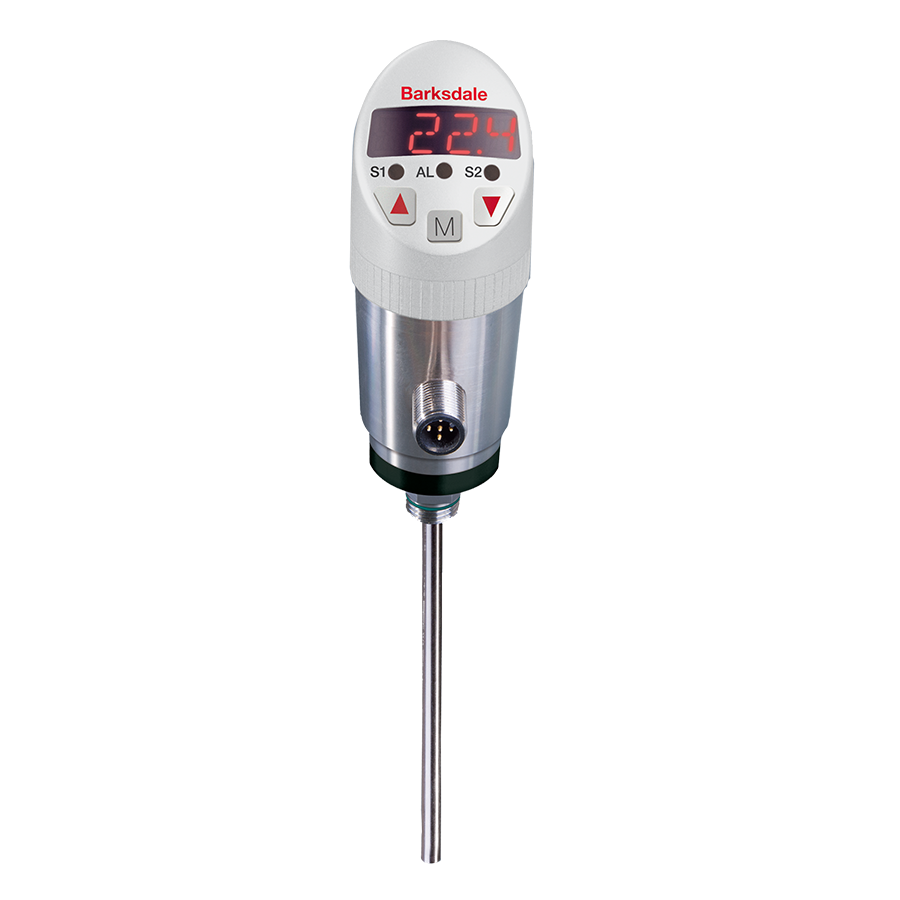

BTS3000

Description

BTS3000 Electronic Temperature Switch with IO-Link combines Barksdale’s core strength of technical product expertise and customization capabilities with the forward looking communication protocol of IO-Link, supporting Industry 4.0, one of the key visions in the global industrial market. Barksdale's BTS3000 Electronic Dual Temperature Switches combine three discrete components (dual temperature switch, transducer, and digital temperature gauge) into one compact package. The BTS3000 is available in multiple output configurations, including combinations of: (1) single or dual temperature switch, (2) single or dual temperature switch with analog output (4-20 mA or 0-10 V), or (3) optional digital output (IO-Link communication protocol). Setpoints and deadband are easily adjusted using a user-friendly menu where hysteresis can be set up to 125% of its measuring range. Analog transducer outputs are scalable from 25% to 100% of the full adjustable range. The BTS3000 Electronic Temperature Switch offers an easy to read 4-digit 14-segment LED angled display which is rotatable to 320°. Due to the BTS3000’s inversion capability, the units can be installed upside down while maintaining the original text orientation. The BTS3000 Temperature Switch is an ideal solution for temperature control applications requiring precision, flexibility and long life.

Features

• Measuring range: -22° to +284°F (-30° to +140°C)
• One or two switch points Analog output 4 - 20 mA or 0 - 10 V
• Display & electronic connection: rotatable by 320°
• Simple navigation menu
• Superior EMI protection
• 0.50% accuracy
• Enclosure Rating: Type 4X (IP65) / Type 6 (IP67)
• IO-Link Communication Protocol option

Applications

• Machine tool industry
• Hydraulic & pneumatic systems
• Injection molding machines
• Cooling monitoring / circuits Lubrication systems
• Construction machinery
• Automobile industry
